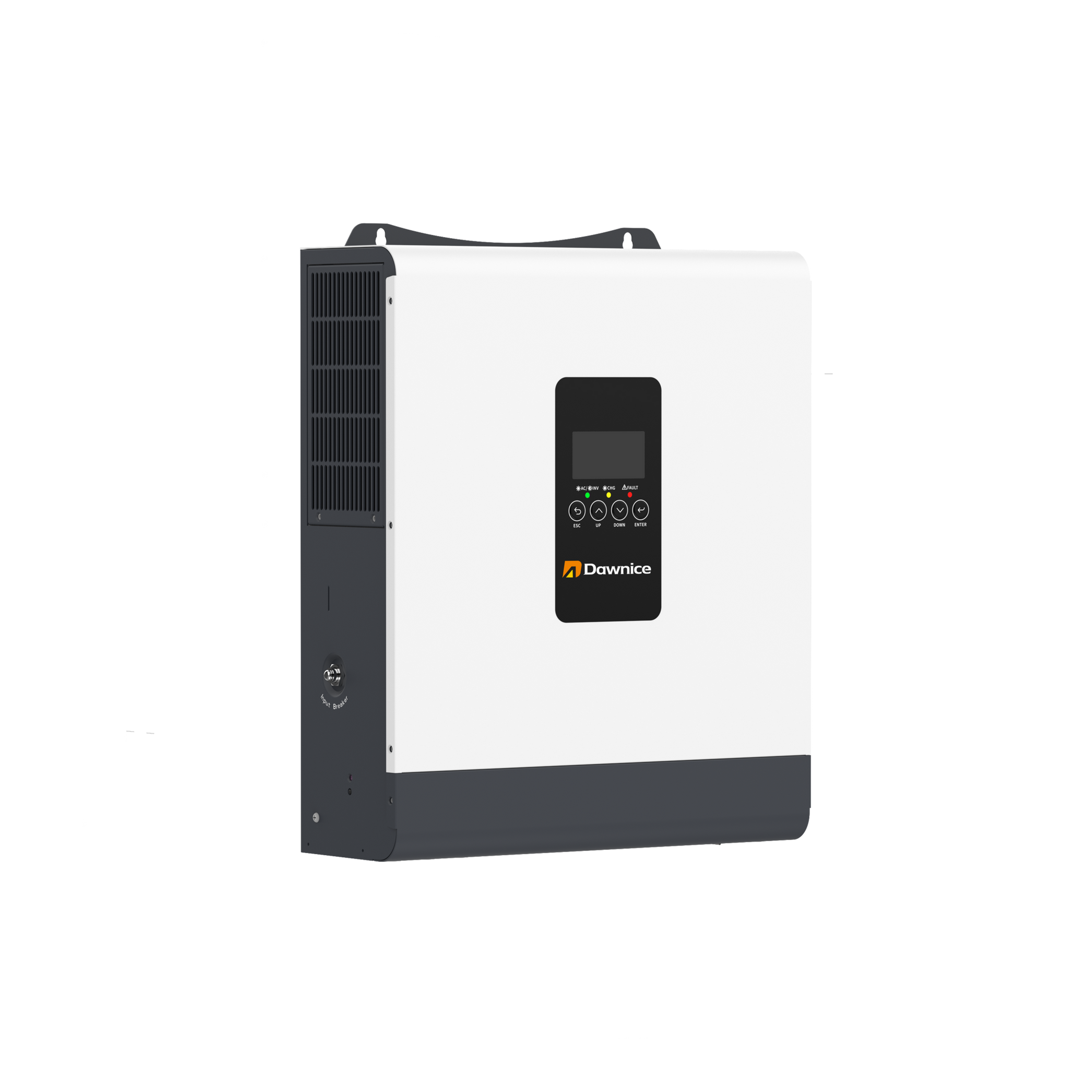

Model DWA-12K-LP1_DO-EU

Indoor Protection: IP20

Hybrid Inverter (Non-Export)

Single Phase

50Hz/60Hz

220/230/240V AC

L+N+PE

Rated Battery Voltage 48V

Max PV Array Power 15kW (2 MPPT)

Max DC Voltage 500V

MPPT Range 60-450V DC

MPPT Tracker 2

MPPT String 2

Battery Voltage Range 42-56V DC

Max Charge Current 160A DC

Rated Power 12kW

Parallel Connection Capability (up to 6 units)

Size: 420*500*130mm

Weight: 15.8kg

5 Years Local Philippines Warranty

Engineered with built-in zero-export capability that syncs phase, voltage, and frequency with the grid to supplement solar generation
